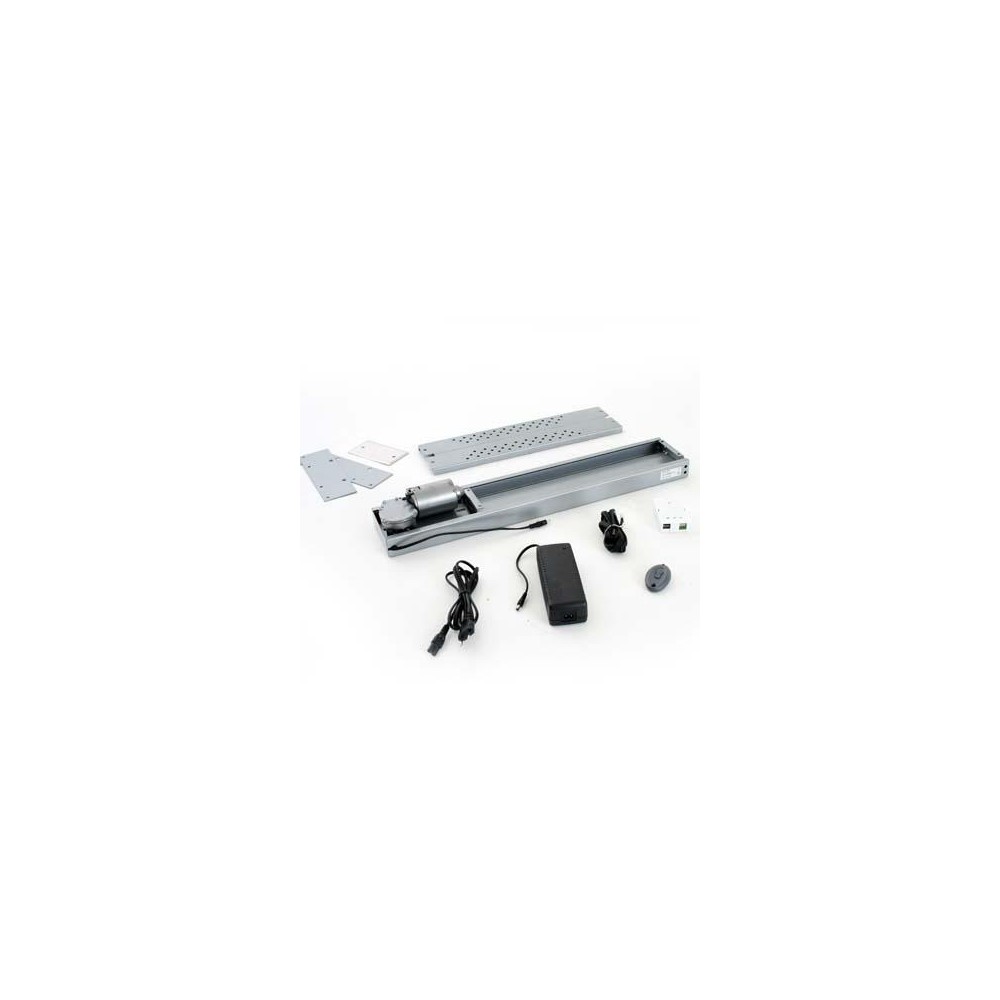

ST460B VENSET INTEGRATED TV LIFT INCL. MOUNTING PLATES
ST460B 7SXXS1 / MB460 S1
The ST460B of Venset is a base model that’s used a lot for lifting smaller screens. Its small integration size and affordable price make the device especially well-suited for integration in the foot board of a bed, pleasure yachts, etc. This model does not come with a separate valve lift, since it is so light and the screens it carries are usually so small that a simple RVS plate is sufficient.
Specifications Venset ST460B incl. mounting plates
| Lift size | 645,5 x 120 x 84,5 mm |
| Mounting depth | 46 / 49 mm excl. / incl. brackets |
| Mounting height | 645,5 mm |
| Stroke length | 460 mm (no possibility to limit) |
| Height adjustment | 645,5 – 1105,5 mm |
| Screen height | max. 460 mm |
| VESA | 200 x 200, 200 x 100, 100 x 100, 75 x 75, 50 x 50 |
| Lift capacity | 0 - 50 kg (also upside down) |
| Remote control | RF, IR optional |
| Mounting | (cabinet) Wall |
| Running direction | Standard and upside down |
| Rotatable | No |
| Security | No |
| Guarantee | 2 years manufacturer's warranty on material and production errors |
| Delivery includes | Mounting platesST460, RF remote control, trafo en manual switch |
| Options | IR remote |
ST460B 7SXXS1 / MB460 S1
26 Items
Data sheet
- HEIGHT ADJUSTMENT (MM)
- 460
- VESA (MM)
- 075x75
- VESA (MM)
- 200x100
- VESA (MM)
- 050x50
- VESA (MM)
- 100x100
- VESA (MM)
- 200x200
- SAFETY FUNCTION
- Nee
Specific References
The ST460B of Venset is a base model that’s used a lot for lifting smaller screens. Its small integration size and affordable price make the device especially well-suited for integration in the foot board of a bed, pleasure yachts, etc. This model does not come with a separate valve lift, since it is so light and the screens it carries are usually so small that a simple RVS plate is sufficient.
