ST700A VENSET TV LIFT INBOUW

ST700A 7BXX1

This telescopic tv-lift is extremely suitable for lifting larger screens, to a height of 67 cm. Because of the lifting height that can be made, this TV-lift mainly is used in living rooms or various professional applications. This lift is equipped with a security mechanism, which enter into force once there is an object stuck in when the lift is moving downwards. With the included bracket-set the maximum VESA of the lift is 400x300.

€425.00
Tax included

Specifications Venset ST700A


Lift size600 x 286 x 72 mm
Mounting depth50 / 61,5 mm excl. / incl. brackets
Mounting height600 / 646-886 mm excl. / incl. lidlifter
Stroke lengthmax. 700 mm, to limit mechanical
Height adjustment    600 – 1300 mm
Screen heightmax. 700 mm
VESA100 x 100, 200 x 100, 200 x 200, 300 x 300, 400 x 100, 400 x 200, 400 x 300
Lift capacity5-65 kg (29 kg upside down)
Remote controlRF, IR optional
Mounting(cabinet) Wall, with FM700 on the floor, ceiling
Running directionstandard and upside down
Rotatablenee
Securityyes
Guarantee2 years manufacturer's warranty on material and production errors

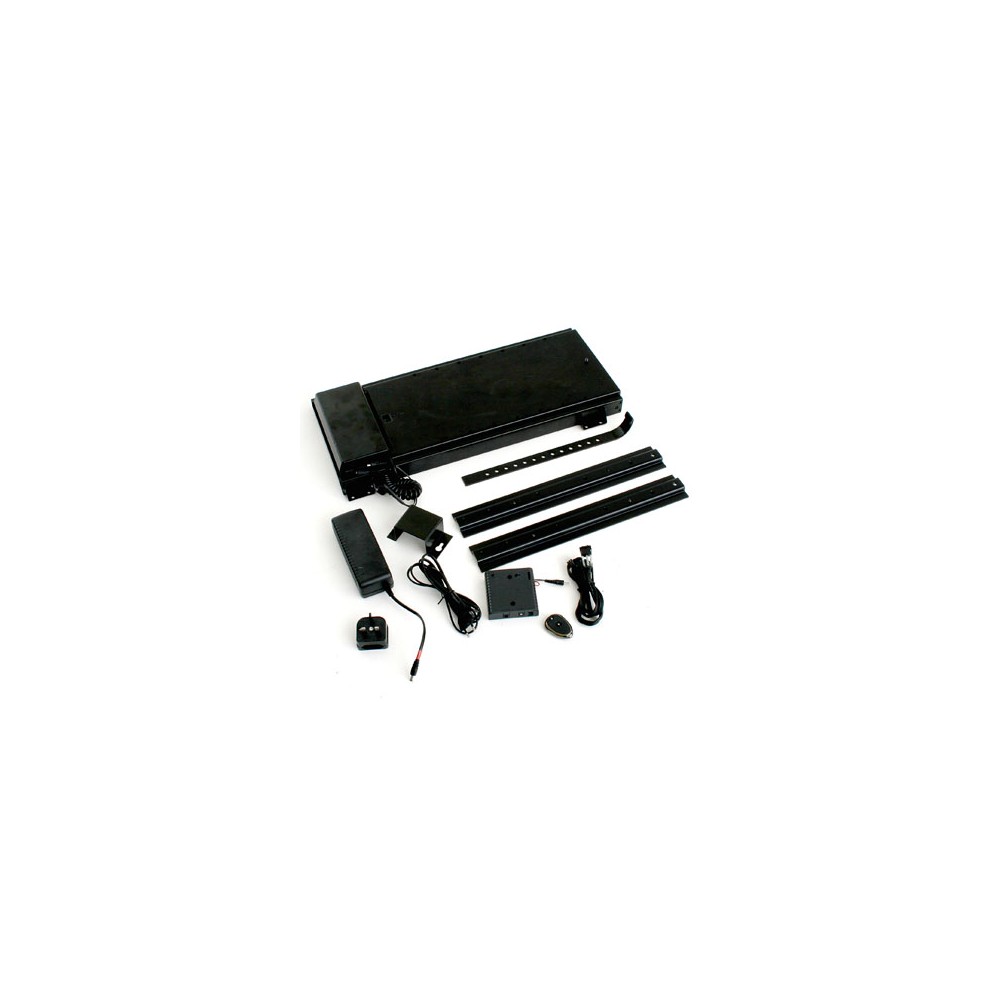

Delivery includesBracketset ST700, RF remote control, trafo en manual switch
OptionsManual tilt bracket SB001, Bracketset ST1000, IR remotecontrol, bracket FM700
ST700A 7BXX1
19 Items

Data sheet

HEIGHT ADJUSTMENT (MM)
700
VESA (MM)
100x100
VESA (MM)
200x100
VESA (MM)
200x200
VESA (MM)
300x300
VESA (MM)
400x100
VESA (MM)
400x200
VESA (MM)
400x400
VESA (MM)
300-200
MINIMUM BUILD-IN HEIGHT (MM)
650
SAFETY FUNCTION
Ja, enkel neerwaarts
