ST1000A VENSET TV LIFT INTEGRATED
ST1000A 7BXX1
This telescopic tv-lift is extremely suitable for lifting larger screens, to a height of 67 cm. Because of the lifting height that can be made, this TV-lift mainly is used in living rooms or various professional applications. This lift is equipped with a security mechanism, which enter into force once there is an object stuck in when the lift is moving downwards. With the included bracket-set the maximum VESA of the lift is 400x300.
Specifications Venset ST1000A
Lift size | 750 x 286 x 72 mm |
Mounting depth | 50 / 70 mm excl. / incl. brackets |
Mounting height | 750 / 796 - 1036 mm excl./ incl. lidlifter |
Stroke length | max. 1000 mm, to limit mechanical |
Height adjustment | 750 – 1750 mm |
Screen height | max. 1000 mm |
VESA | 200 x 100, 200 x 200, 300 x 300, 400 x 100, 400 x 200, 400 x 300, 400 x 400, 600 x 100, 600 x 200, 600 x 400 |
Lift capacity | 5-65 kg (29 kg upside down) |
Remote control | RF, IR optional |
Mounting | (cabinet) Wall, with FM1000 on the floor, ceiling |
Running direction | standard and upside down |
Rotatable | nee |
Security | yes |
Guarantee | 2 years manufacturer's warranty on material and production errors |

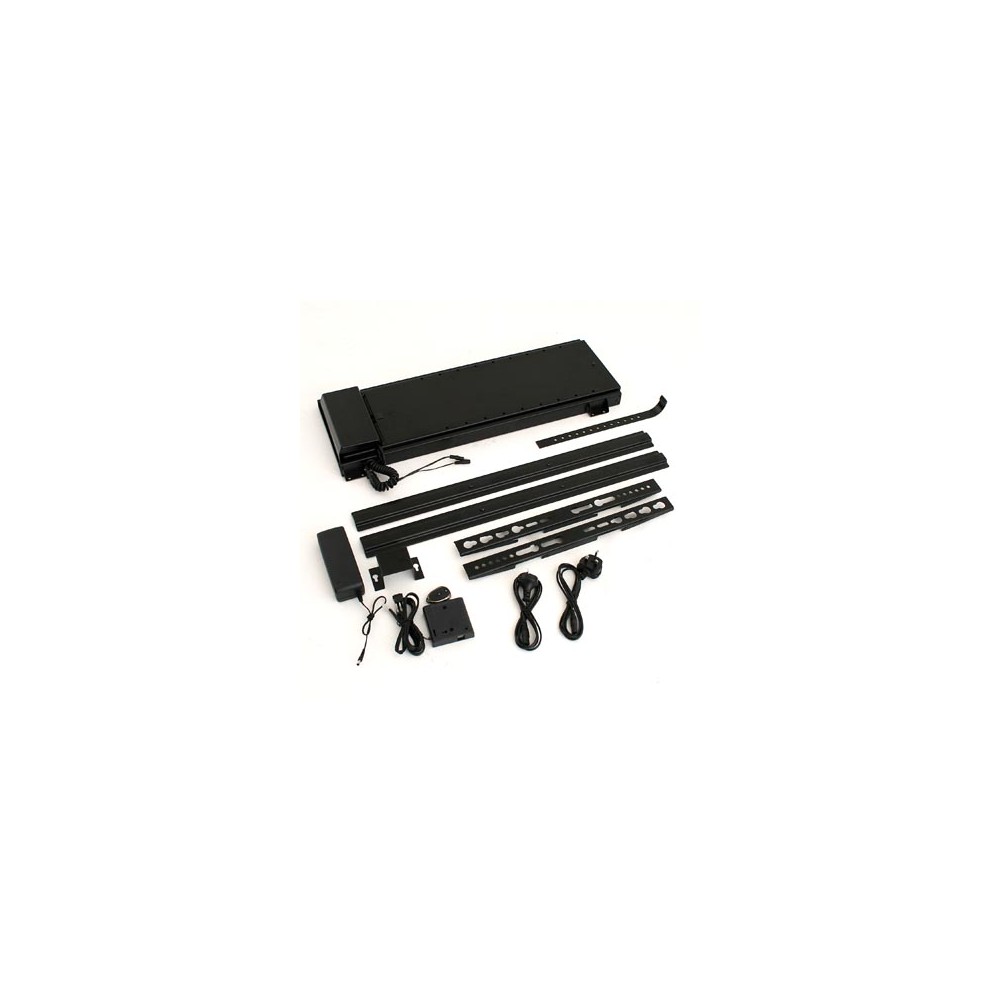

Delivery includes | Bracketset ST1000, RF remote control, trafo en manual switch |
Options | Manual tilt bracket SB001, Bracketset ST700, IR remotecontrol, bracket FM1000, |
ST1000A 7BXX1
19 Items
2023-02-07
Data sheet
- HEIGHT ADJUSTMENT (MM)
- 1000
- VESA (MM)
- 100x100
- VESA (MM)
- 200x100
- VESA (MM)
- 200x200
- VESA (MM)
- 300x300
- VESA (MM)
- 400x100
- VESA (MM)
- 400x200
- VESA (MM)
- 400x300
- VESA (MM)
- 400x400
- VESA (MM)
- 600x100
- VESA (MM)
- 600x200
- VESA (MM)
- 600x400
- MINIMUM BUILD-IN HEIGHT (MM)
- 800
- SAFETY FUNCTION
- Ja, enkel neerwaarts
